WS-WNU683GA

Haber
Driver & Software :

Garanti Belgesi :

Belgeler :


Description

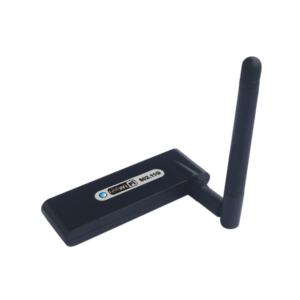

With the Winstars Wi-Fi 54g USB Adapter you can add wireless 802.11 b/g internet access to any computer with a USB port. Now you can easily upgrade your older laptop or add wireless internet freedom to a desktop computer. Designed to provide excellent performance while drawing as little power as possible, the Winstars Wi-Fi 54g USB Adapter is perfect for laptop users who want wireless internet freedom without running their battery dry. The Winstars Wi-Fi 54g USB Adapter features full compliance with the IEEE 802.11b/g wireless standard offering the best compatibility and future-proof reliability.

Featuring full WEP (Wired Equipment Privacy) and robust WPA (Wi-Fi Protected Access) security, the Winstars Wi-Fi 54g USB Adapter lets can check e-mail, surf the internet and share files on your wireless internet connection with the highest level of protection.


Features

  • Add Wireless 802.11 b/g access to any USB enabled computer
  • Up to five times faster than previous generation wireless connection standard (Wireless 802.11b)
  • Full 64-bit or 128-bit WEP (Wired Equivalent Privacy) and WPA (Wi-Fi Protected Access) security for protected internet usage
  • Supports Microsoft Windows 98SE, Me, 2000 , XP , Vista / MAC OS X / Linux
  • Operating distance of up to 300 meters in open space
  • Easy operation and set-up
  • 1Mbps, 2Mbps, 5.5Mbps, 11Mbps selectable Data Rate
  • Supports USB 1.0, 1.1, 2.0 connector ports
  • 2.400GHz ~ 2.4835GHz unlicensed ISM Frequency Band
  • DSSS (Direct Sequence Spread Spectrum)
  • Modulation Method: DQPSK / DBPSK / CCK

Specifications



USB Specification
USB 2.0
Transmission Power
17 dBm
Power Consumption
Transmit : < 350mA. Receive : < 260mA.
Data Rate
IEEE 802.11g : 6, 9, 12, 18, 24, 36, 48, 54Mbps
Operating Temperature
0 ~ 55 celsius
Storage Temperature
-20 ~ 70 celsius
Operating System Support
Windows 98SE, Me, 2000, XP, Vista, MAC, Linux
Humidity
5 ~ 90% (non-condensing)
Modulation
IEEE 802.11g : BPSK, QPSK, 16QAM, 64QAM
Security
64-bit or 128-bit WEP/WPA TKIP
Management
Windows-based Utility
Operating Range
100 - 300m, depending on surrounding environment
Antenna Type
On board chip antenna
Chipset
Ralink 2571
Frequency
2.4GHz ~ 2.483GHz unlicensed ISM band




Requirements

  • Windows System :
    • Windows 98SE, Me, 2000, XP or Vista
    • MAC OS
    • Linux
  • USB 1.0, 1.1 or 2.0 port

Package Content

  • 1 x Wi-Fi 54g USB Adapter
  • 1 x Antenna
  • 1 x Driver CD
  • 1 x Quick Start Guide
